PCB_Driver_DC_Motor
⚡ PCB_DC_Driver
Single DC Motor Driver with H-Bridge Architecture
📘 Overview
PCB_DC_Driver is a theoretical yet practical design for a DC motor driver built around an H-Bridge architecture using dedicated gate drivers.
The project focuses on achieving an efficient, compact, and manufacturable design while following Design for Assembly (DFA) and Design for Manufacturing (DFM) principles.

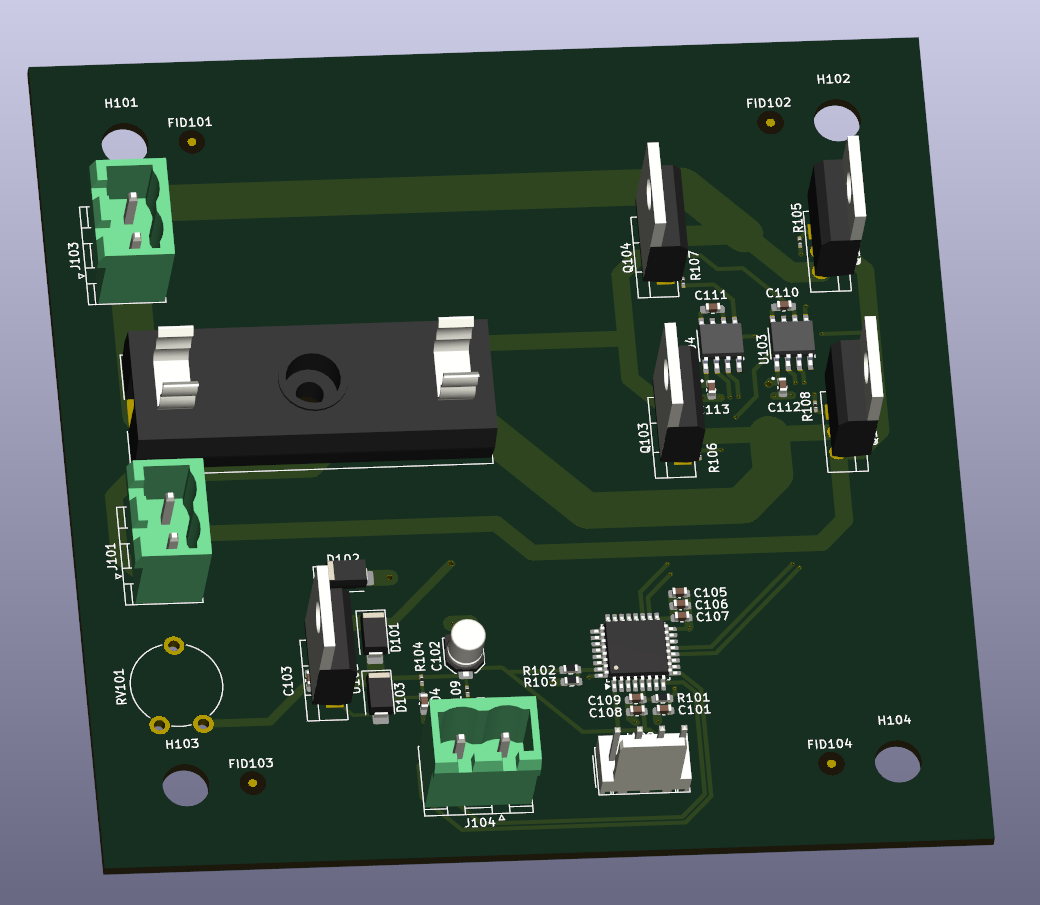

3D render of the finished PCB_DC_Driver board
⚙️ General Information
- Theoretical simple DC driver implementing an H-Bridge with gate drivers.
- Designed with DFA considerations to optimize ease of assembly and production workflow.
- Built on 2 layers, using standard FR4 (TG135) core and prepreg stackup, 1.6 mm thickness.

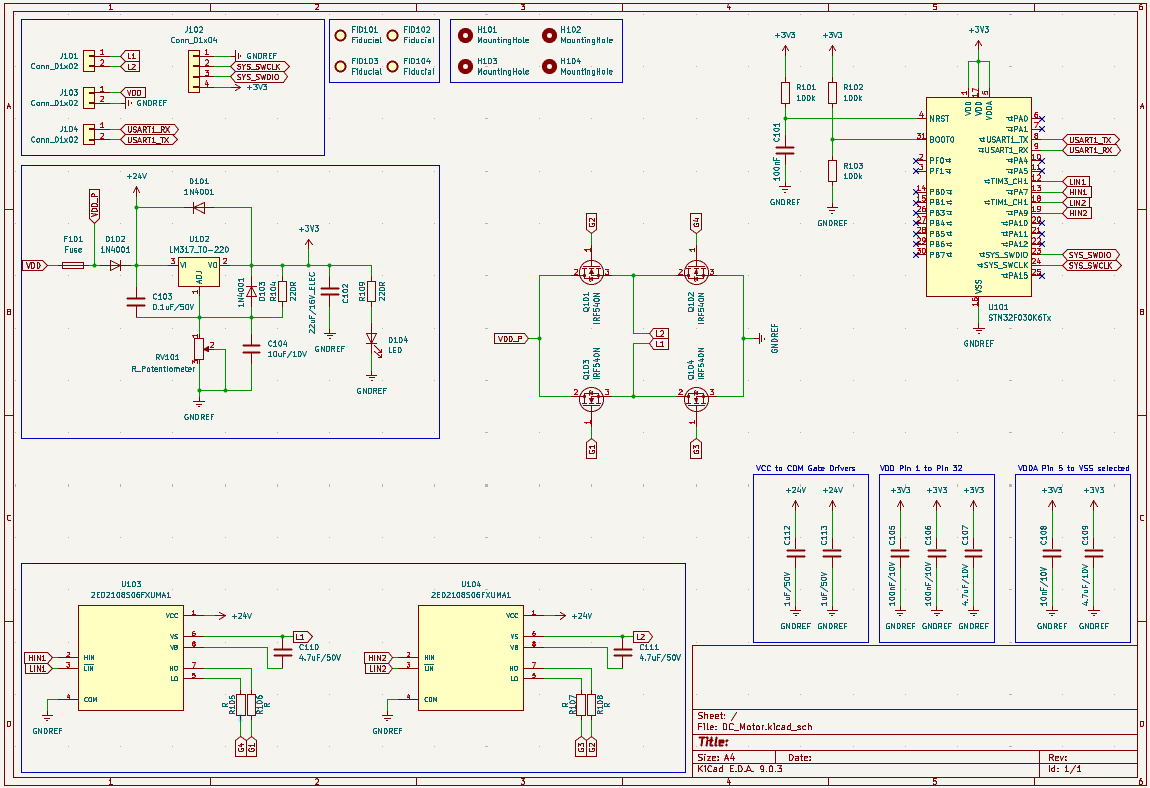

Full schematic diagram of the PCB_DC_Driver (KiCad 9)
🔧 Characteristics
- Controls one DC motor with full H-Bridge operation.
- Supports up to 10 A continuous current, limited by the gate drivers and onboard fuse.
- Operates at 24 VDC nominal input voltage.
- All high-current power lanes routed on the top layer to simplify current flow and reduce noise.
- All components placed on the top side, enabling a two-step DFA process:
- Reflow soldering for SMD components.
- Wave soldering for through-hole parts.
- DFM-compliant design:
- Includes multiple mounting holes.
- Maximum PCB size: 100 × 100 mm (optimized for JLCPCB).
- Surface finish: HASL (with lead).
- Tented vias for protection and manufacturing consistency.
- Optimized gate loop design:
- Gate drivers positioned close to MOSFETs to minimize loop inductance.
- Bottom ground layer cleared in high-current paths to ensure controlled current direction and reduce EMI/EMC issues.
- Space between MOSFET: For a 20x15 Mounted radiators space.
- Microcontroller: Reused STM32F030K6T6 from previous projects for convenience, reusability, and familiarity with existing firmware.

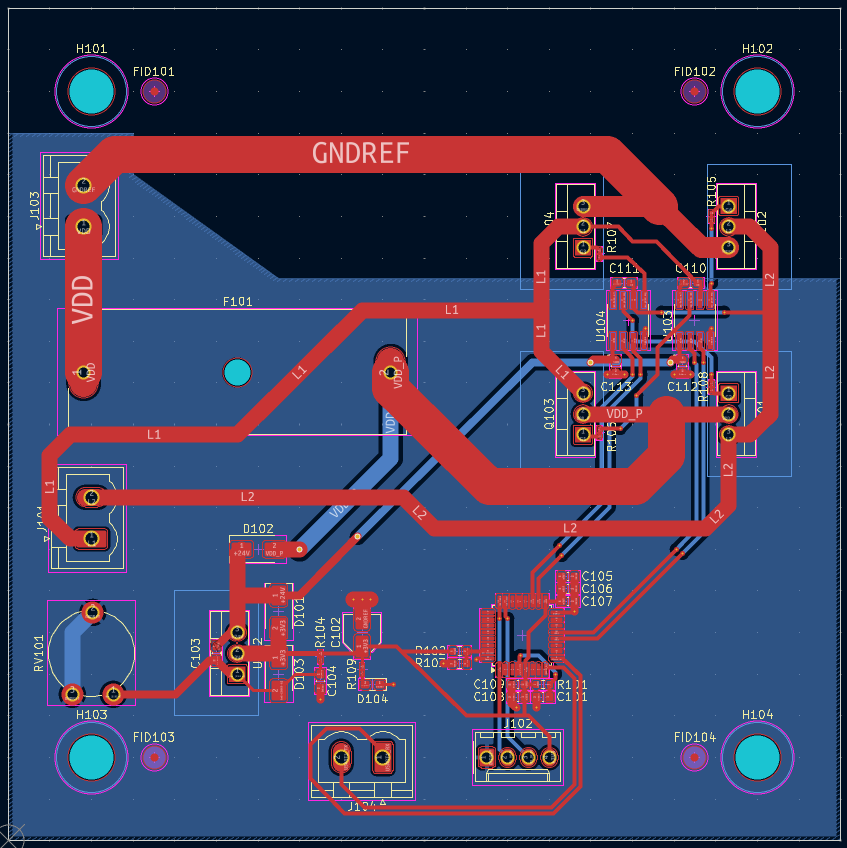

Top layer routing and overall PCB layout (KiCad 9)
⚠️ Design Notes
- Power paths designed with proper copper width for 10 A continuous load capability.
- Ground and power planes isolated to improve switching behavior and minimize noise coupling.
- Routing and layout optimized for EMI/EMC performance.
- Designed for expandability, allowing integration of PWM control, fault sensing, or current feedback in future iterations.
